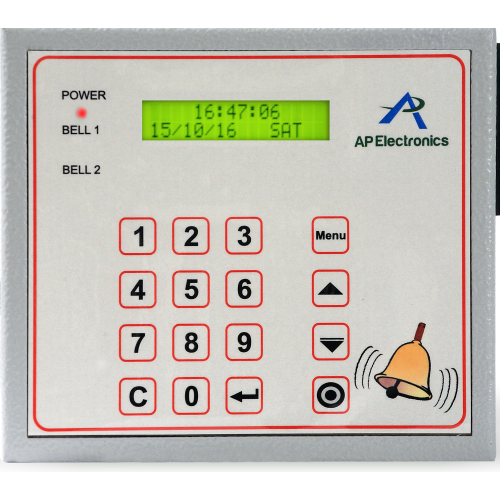

Computerrized Bell System, EasyWay-Bel105, is ideally suited for Schools, Offices and Factories. Activates Electrical Bell, Siren, Hooter as per User Defined Schedule. Comes with user-friendly Windows based Software.

FEATURES :-

Separate Schedule for weekdays & week-off days.
Programmable week-offs.
Fifty set times for Monday to Friday, Fifty for second week-off and Twenty five for first week-off.
Schedule can be defined through Keypad and / or Software.
Choice of four types of bell operation for each set time.
Manual activation of bell whenever required.
Long life Sillicon Rubber Keypad.
Password protection for Software and Keypad.
Pemper proof Zero Maintenance System.
Non Volatile Memory, supports data for 10 years
Connectivity to Computer through RS 232
Real Time Clock (RTC), Battery back - up for RTC.

SOFTWARE :-

User friendly Windows based software.
User definable schedules downloding facility.
User definable four types of Alarm / Bell settings, Two Alarm / Bell with continuous ringing and Two Alarm/ Bell with break-ringing, with user definable time limit.
User definable Separate schedule for Regular Days, Exams Days and Vacation.
Password protection.

TECHNICAL SPECIFICATIONS :-

Display	6 digits ( Time / Date )
Display – Type	7 Segment Red LED
Indicator	2 LED for Power ON (Red), Communication ON (Yellow)
Battery Back-up	For RTC – 1 Year
Communication	RS 232
Relay Output	230 V, 1 Amp. (Standard)
Buzzer	While Relay ON
Keypad (Silicon Rubber)	Numeric and Functional Keys
Operating Voltage	INPUT : 220-240 VAC SMPS, OUTPUT : 9V DC Regulated
Size ( H x W x D )	144 mm x 93mm x 35mm
Weight	200 grams ( Approximate )
Mounting	Wall Mounting
Operating Environment	Dust Free - Normal gate environment

Digital School Broadcast ( DSB ) is an essential system for the modern methods of teaching in school. Our system has been designed to enable the principal to control all the rooms and classes of the school building. DSB can be used for :

Announcement to any, a group, or all classrooms.
Relaying recorded lessons / speeches to classrooms.
Contacting the class teacher and getting back information.
Recording of teacher’s lecture so as to enable the teacher to overcome deficiencies in his / her teaching method.

THE SALIENT FEATURES OF SYSTEM DSB ARE :

DSB is based on Digital Switching Technology, unlike electro-mechanical in conventional school broadcast systems. This make the system very compact, easy to manage and maintain.

DSB has the unique feature of permitting announcements to be made from other locations such as the reception or vice principal’s office.

DSB IS CAPABLE OF OPERATING IN THREE MODES :

Monitor Mode- for the principal to listen to the classroom conversation.
Address Mode- for the principal or any other designated person to make announcement to selected classrooms.
All Classroom Mode- to address or playback recorded message to all rooms in the school.

THE SYSTEM DSB COMPRISEDS OF THE FOLLOWING :

Master consol is available in different capacity such as for 20,40,60,100,120,200 classrooms.

Communication Instrument

This is the piece of equipment with which the principal or any designated person controls the operation of the school broadcast system.

Extra requirement for the system:

Classroom speaker (Preferable MEGA / DIAMOND ) metal cabinet speaker. Cassette amplifier AHUJA or MEGA make ( One Speaker takes 5 watt ) so amplifier required accordingly. 20 class systems requires 100 watt amplifier

Good quality flexible cable for wiring from classroom to office. Individual cable from classroom to office is required.
